Pleasure Craft Anodes

Pleasure Craft anodes made of zinc meet is the MIL-A-18001K alloy and are 95% efficient. Aluminum Anodes conform to the MIL-A-24779 alloy and are 85% efficient.  We do not recommend the usage of Aluminum anodes in fresh or lower levels of brackish water.

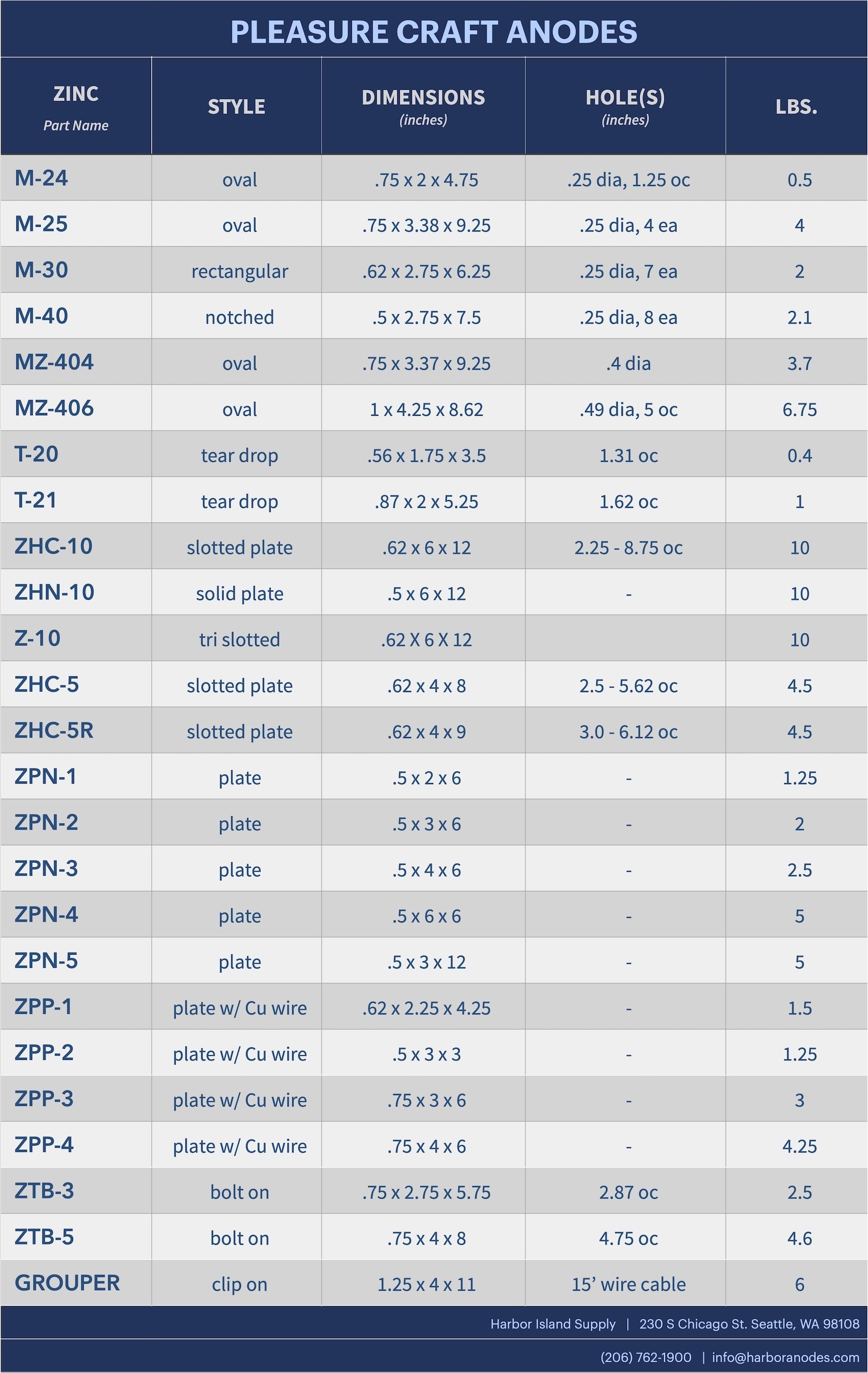

ZINC PARTSTYLEDIMENSIONS (INCHES)HOLE(S) (INCHES)LBS
M-24oval.75 x 2 x 4.75.25 dia, 1.25 oc0.5
M-25oval.75 x 3.38 x 9.25.25 dia, 4 ea4
M-30rectangular.62 x 2.75 x 6.25.25 dia, 7 ea2
M-40notched.5 x 2.75 x 7.5.25 dia, 8 ea2.1
MZ-404oval.75 x 3.37 x 9.25.4 dia3.7
MZ-406oval1 x 4.25 x 8.62.49 dia, 5 oc6.75
T-20tear drop.56 x 1.75 x 3.51.31 oc0.4
T-21tear drop.87 x 2 x 5.251.62 oc1
ZHC-10slotted plate.62 x 6 x 122.25 - 8.75 oc10
ZHN-10solid plate.5 x 6 x 12 -10
Z-10tri slotted.62 X 6 X 1210
ZHC-5slotted plate.62 x 4 x 82.5 - 5.62 oc4.5
ZHC-5Rslotted plate.62 x 4 x 93.0 - 6.12 oc4.5
ZPN-1plate.5 x 2 x 6 -1.25
ZPN-2plate.5 x 3 x 6 -2
ZPN-3plate.5 x 4 x 6 -2.5
ZPN-4plate.5 x 6 x 6 -5
ZPN-5plate.5 x 3 x 12 -5
ZPP-1plate w/ Cu wire.62 x 2.25 x 4.25 -1.5
ZPP-2plate w/ Cu wire.5 x 3 x 3 -1.25
ZPP-3plate w/ Cu wire.75 x 3 x 6 -3
ZPP-4plate w/ Cu wire.75 x 4 x 6 -4.25
ZTB-3bolt on.75 x 2.75 x 5.752.87 oc2.5
ZTB-5bolt on.75 x 4 x 84.75 oc4.6
GROUPERclip on1.25 x 4 x 1115’ wire cable6

M-24

Pleasure Craft Anodes

blank 1

M-30

Pleasure Craft Anodes

blank 1

MZ-404

MZ-404

blank 1

T-20  &  T-21

T-20

blank 1

ZHN-10

ZHN-10

blank 1

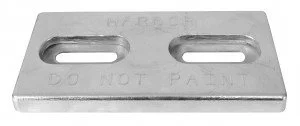

ZHC-5

ZHC-5

ZPN-1

ZPN-1

blank 1

M-25

Pleasure Craft Anodes

blank 1

M-40

Pleasure Craft Anodes

blank 1

MZ-406

MZ-406

blank 1

ZHC-10

ZHC-10

blank 1

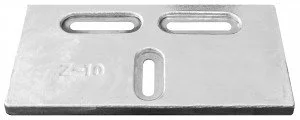

Z-10

Z-10

blank 1

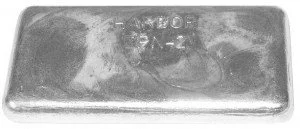

ZPN-2

ZPN-2

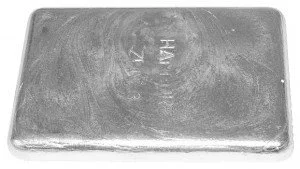

ZPN-3

ZPN-3

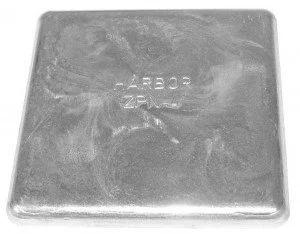

ZPN-4

ZPN-4

ZPN-5

 ZPN-5

ZPP-1

ZPP-1

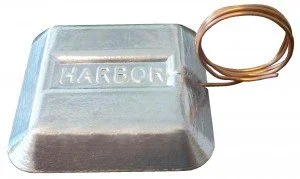

ZPP-2

ZPP-2(revised) (2)

ZPP-3

ZPP-3

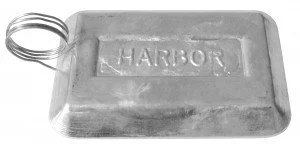

ZPP-4

ZPP-4

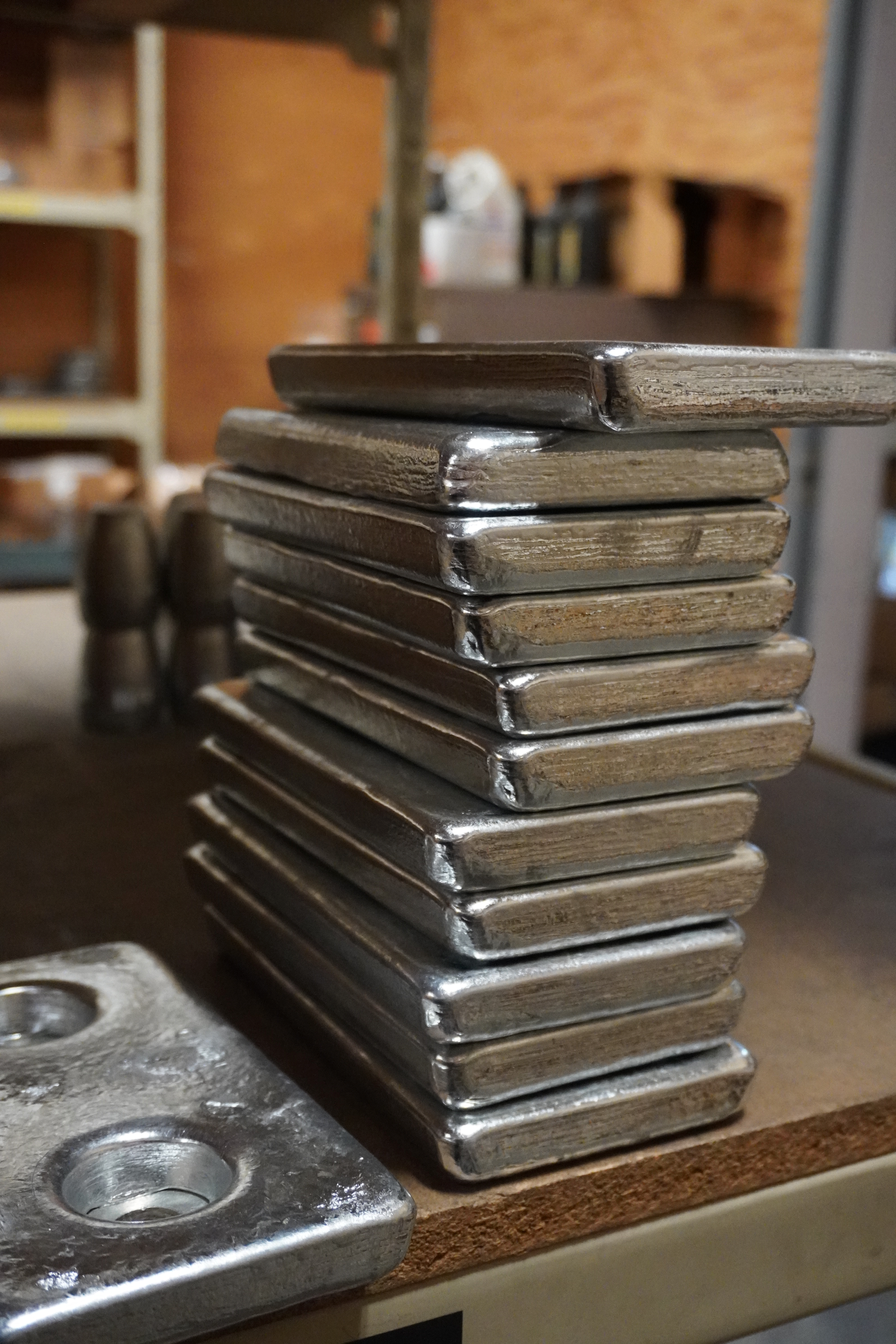

ZTB-3

ZTB-3

ZTB-5

ZTB-5

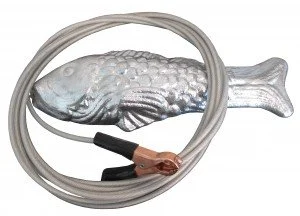

Grouper

Grouper1
