Heat Exchanger & Condenser Anodes

Heat Exchanger Anodes have a 3/8″ or 1/2″ pipe core that is machine grooved.  Steel cores are zinc electroplated to allow bonding with the anode, and conform to MIL-A-18001 and MIL-DTL-18001L.  HARBALUM Aluminum Anodes conform to MIL-A-24779.

ZEP-B-2 through ZEP-B-6 and ZEP-A-6: 1 core, centered.  ZEB-B-9 & ZEP-B-11: 2 cores, 3.5” on center Style C: 2 cores, 6.375” on center.

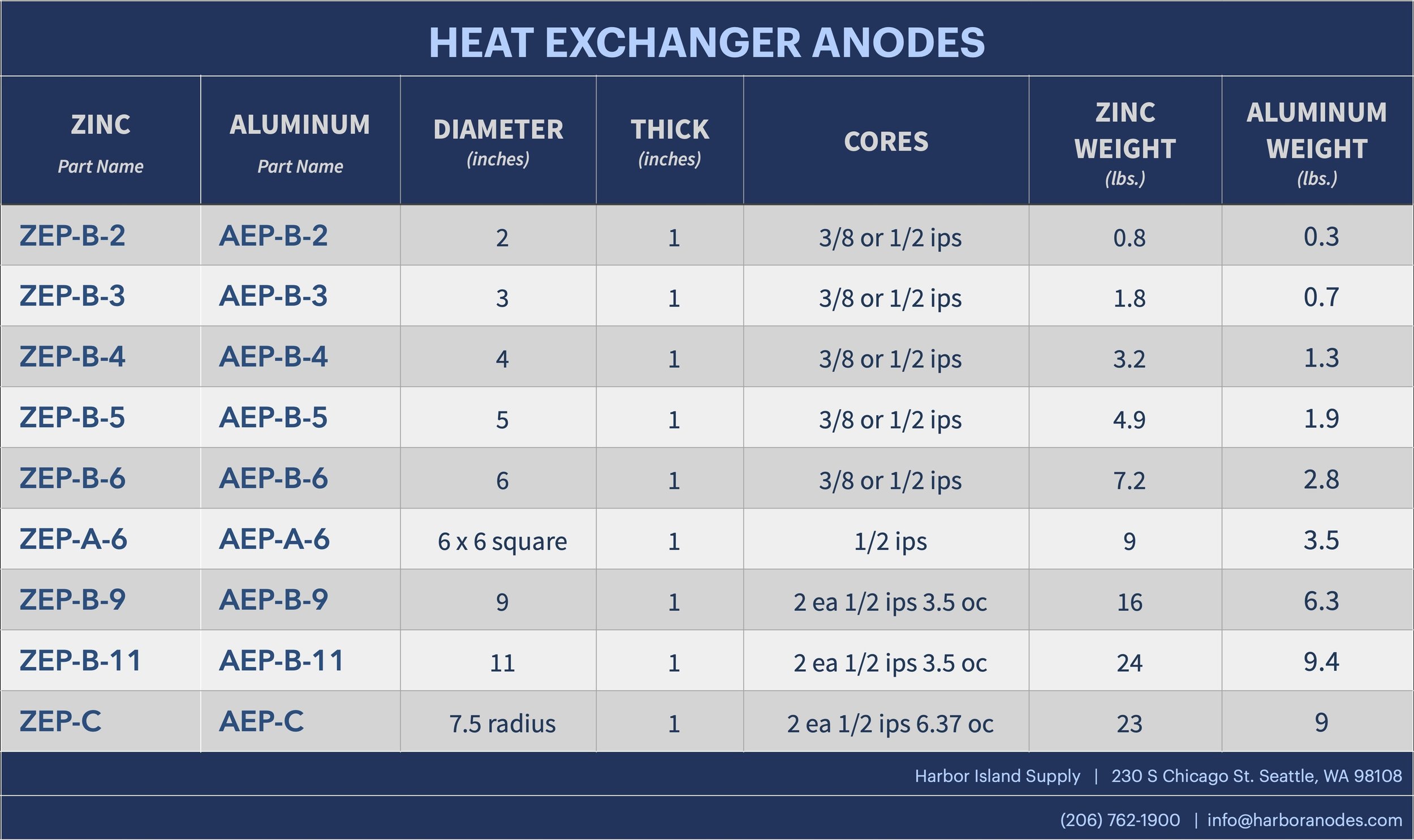

ZINCALUMINUMDIA (INCHES)THICK (INCHES)CORESZINC (LBS)ALUMINUM (LBS)
ZEP-B-2AEP-B-2213/8 or 1/2 ips0.80.3
ZEP-B-3AEP-B-3313/8 or 1/2 ips1.80.7
ZEP-B-4AEP-B-4413/8 or 1/2 ips3.21.3
ZEP-B-5AEP-B-5513/8 or 1/2 ips4.91.9
ZEP-B-6AEP-B-6613/8 or 1/2 ips7.22.8
ZEP-A-6AEP-A-66 x 6 Square11/2 ips93.5
ZEP-B-9AEP-B-9912 ea 1/2 ips 3.5 oc166.3
ZEP-B-11AEP-B-111112 ea 1/2 ips 3.5 oc249.4
ZEP-CAEP-C7.5 radius12 ea 1/2 ips 6.37 oc239

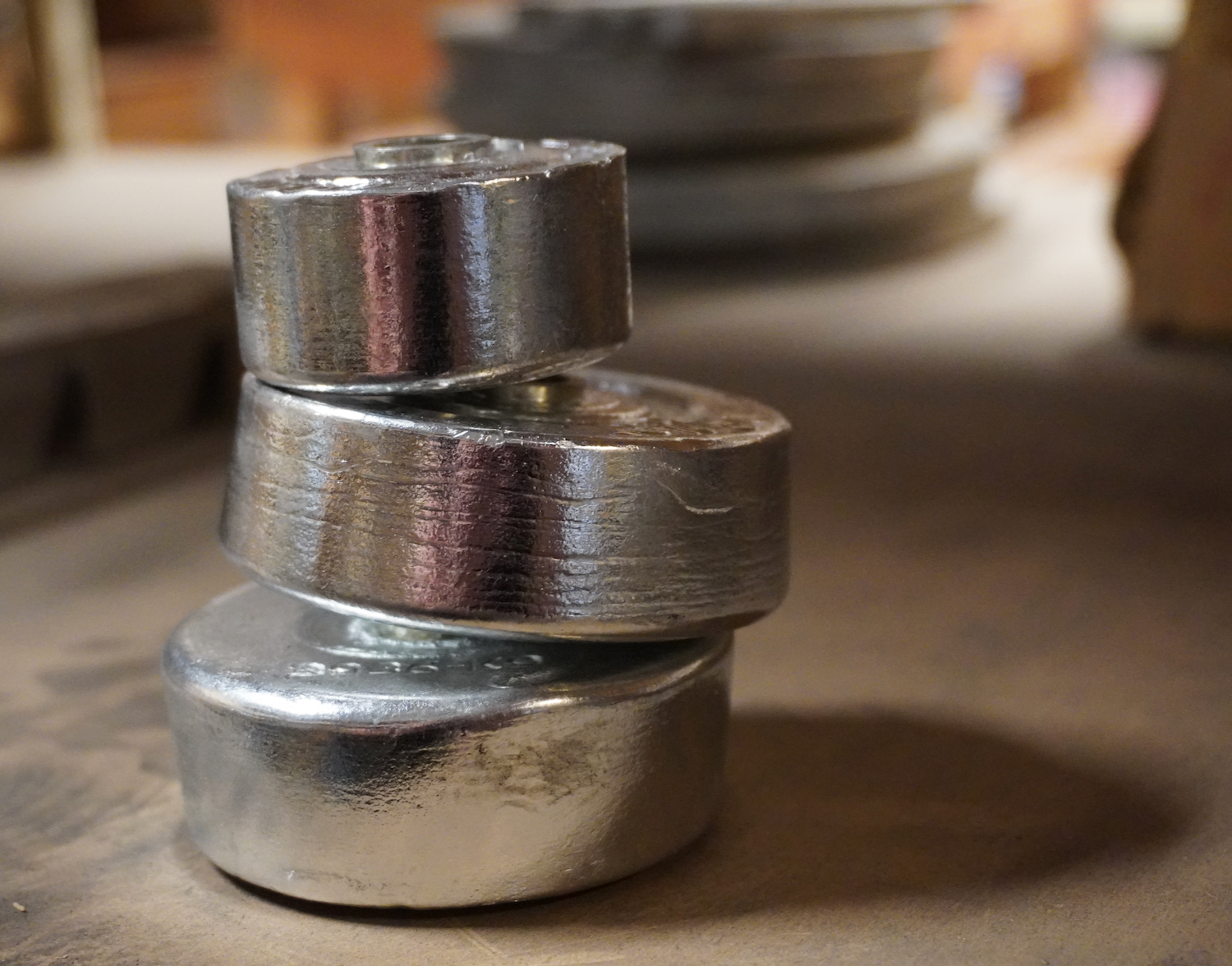

Zn: ZEP-B   Al: AEP-B

(DIA:  2″ – 6″)

Heat Exchanger Condenser Anodes

Zn: ZEP-A-6

Al: AEP-A-6

Heat Exchanger Condenser Anodes

Zn: ZEP-B-9 & ZEB-B-11

Al: AEP-B-9 & AEP-B-11

Heat Exchanger Condenser Anodes

Zn: ZEP-C

Al: AEP-C

Heat Exchanger Condenser Anodes

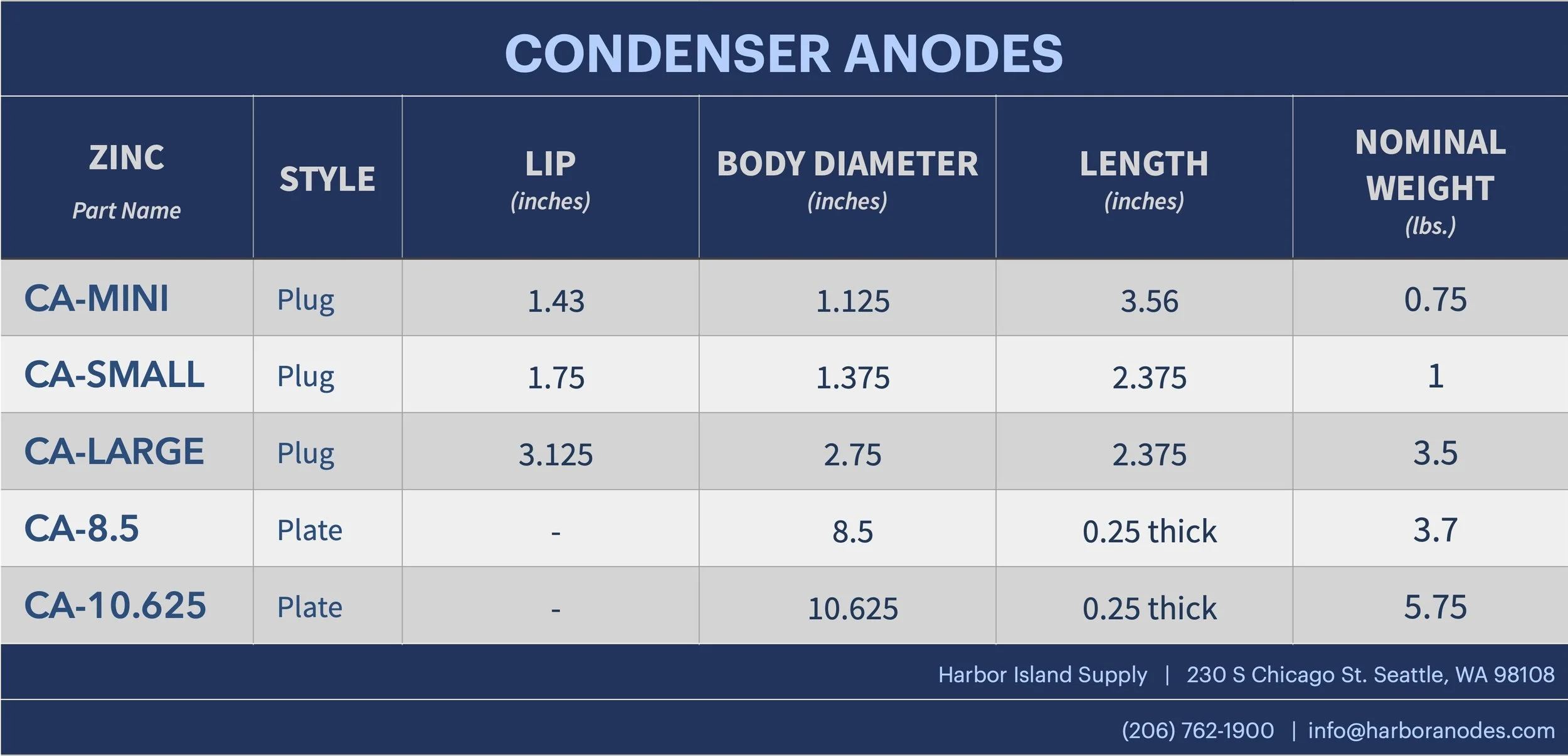

CONDENSOR ANODES

ZINC PARTSTYLELIP (INCHES)BODY DIA (INCHES)LENGTH (INCHES)NOMINAL (LBS)
CA-MINIPLUG1.431.1253.560.75
CA-SMALLPLUG1.751.3752.3751
CA-LARGEPLUG3.1252.752.3753.5
CA-8.5PLATE -8.50.25 THICK3.7
CA-10.625PLATE -10.6250.25 THICK5.75

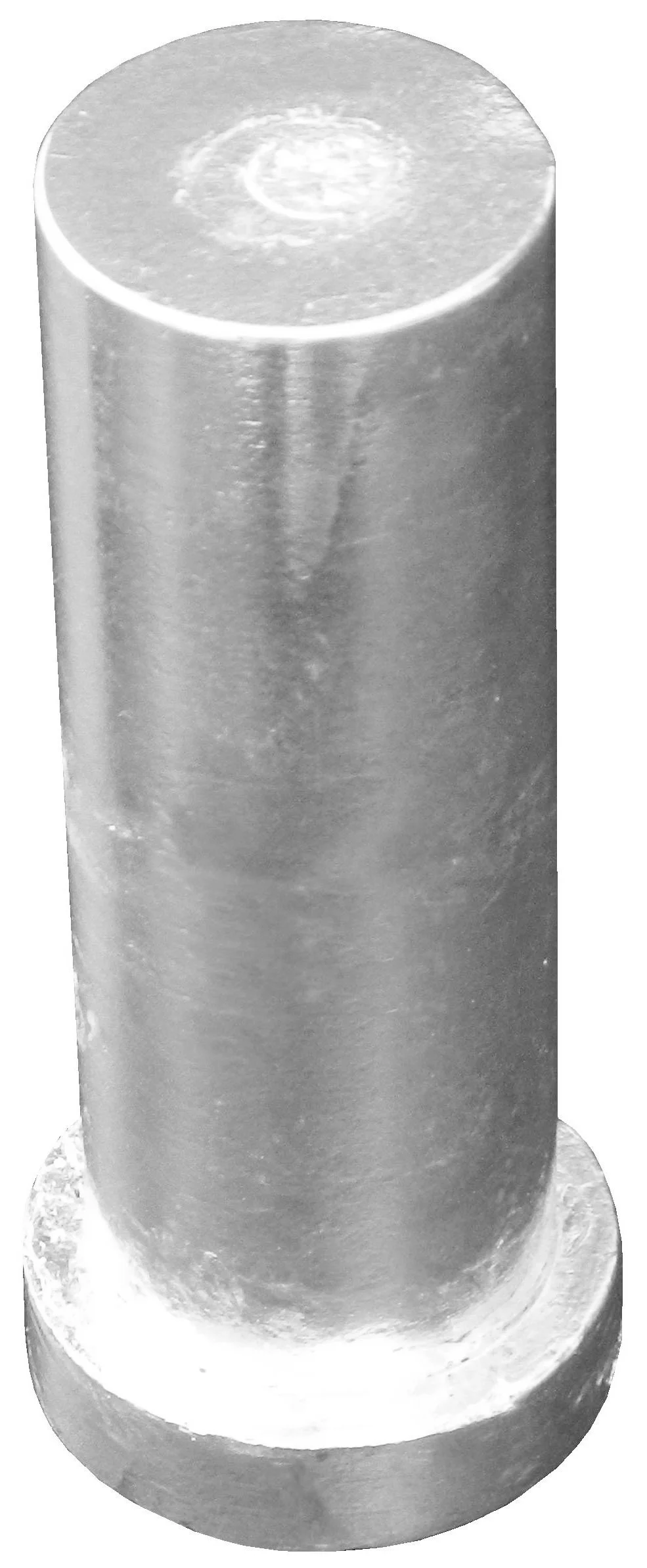

CA-MINI

Heat Exchanger Condenser Anodes

CA-SMALL

Heat Exchanger Condenser Anodes

CA-LARGE

Heat Exchanger Condenser Anodes

CA-8.5

Heat Exchanger Condenser Anodes

CA-10.625

Heat Exchanger Condenser Anodes
